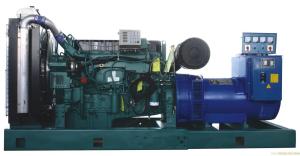

50HZ / 60Hz Volvo Engine Generator

Product Categories

Guangdong ALI Testing Equipment Co,.Ltd

Contact Now

Name: 50HZ 60Hz Volvo Engine Generator
Brand: GSKA
Price: 1 USD

Place of Origin : China and Usa

Brand Name : GSKA

CertifiCAT-partsion : ISO 9001

Model Number : JP-V500

MOQ : 1 set

Price : Negotiable

Packaging Details : Standard plywood and wood package.the actual package size against genset size and handle requires.

Delivery Time : 5-6 weeks on receipt of official sales contract

Payment Terms : L/C,D/P,D/A, Alipay, West Union, TT. Cash,Paypal

Supply Ability : 20sets per Month.

Port : HongKong or ShenZhen,ShangHai,Dalian as required

Contact Now

Technical parameters of diesel generator sets:

Technical data
Genset Model	JP-V500
Rated Voltage	400/230V
Frequency	50/60Hz
Power Factor	0.8(lagging)
The regulating rate of steady voltage	≤±0.5%
The regulating rate of instantaneous voltage	≤-15%/ +20%
The time of steady voltage	≤1.5sec
The waving rate of voltage	≤1.0%
The regulating rate of steady frequency	≤3%
The regulating rate of instantaneous frequency	≤±10%
The time of steady frequency	3sec
Dimension (L×W×H) (mm)	335013501950
Genset weight (kg)	3600
Diesel Engine
Brand	Volvo
Mode	TWD1643GE
Number of Cylinde	6
Rotating Speed	1500/18000RPM
Cycle	Four stroke
Type	waste gas turbine boost,direct spurting type
Bore×Stroke(mm)	144*165
Displacement(L)	16.12
LubriCAT-parts-partsing Capacity(L)	48
Speed Governor	Electrical
Cooling System	Water-cooled
Speed Stability (%)	≤5%
Fuel Consumption at 100% Load	199 g/kw.h
Starting Method	DC24V Electrical starting
Alternator
Brand	Qinghui
Model	TFW-series
Number of Phase	3
Connecting Type	Three Phase and Four Lines
Number of Bearing	1
Grading Protection	IP22
Altitude	≤1000m
Exciter Type	Brushless (AVR automatic voltage regulating)
Insulation Class	H degree
The components of the genset
(1) Volvo Diesel Engine; (2)Qianghui Alternator; (3) Control Panel
Control Panel
The control panel is QuadrupliCAT-parts-partsion protection control panel, with the display of frequency table/water temperature/schedule/battery voltmeter. The genset with low oil pressure, high water temperature, over speed emergency, stop and other pre-protection.
